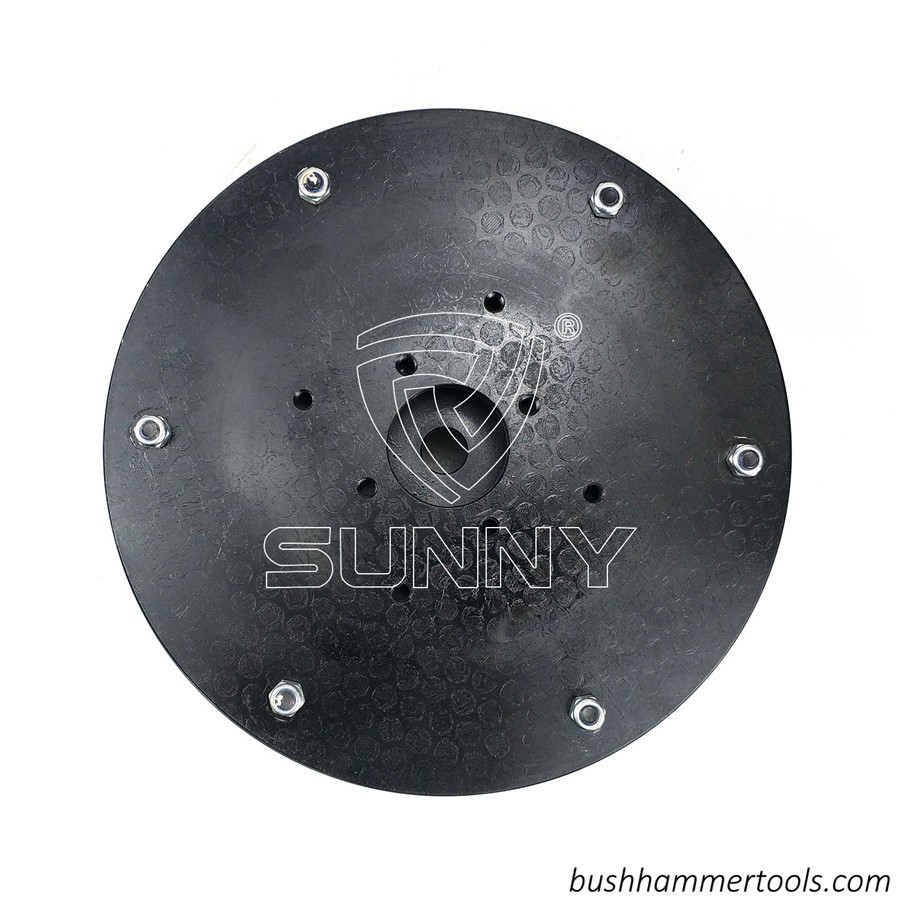

Double Layers 300mm Rotary Bush Hammer Plate With 6 Planetary Bush Hammer Rollers

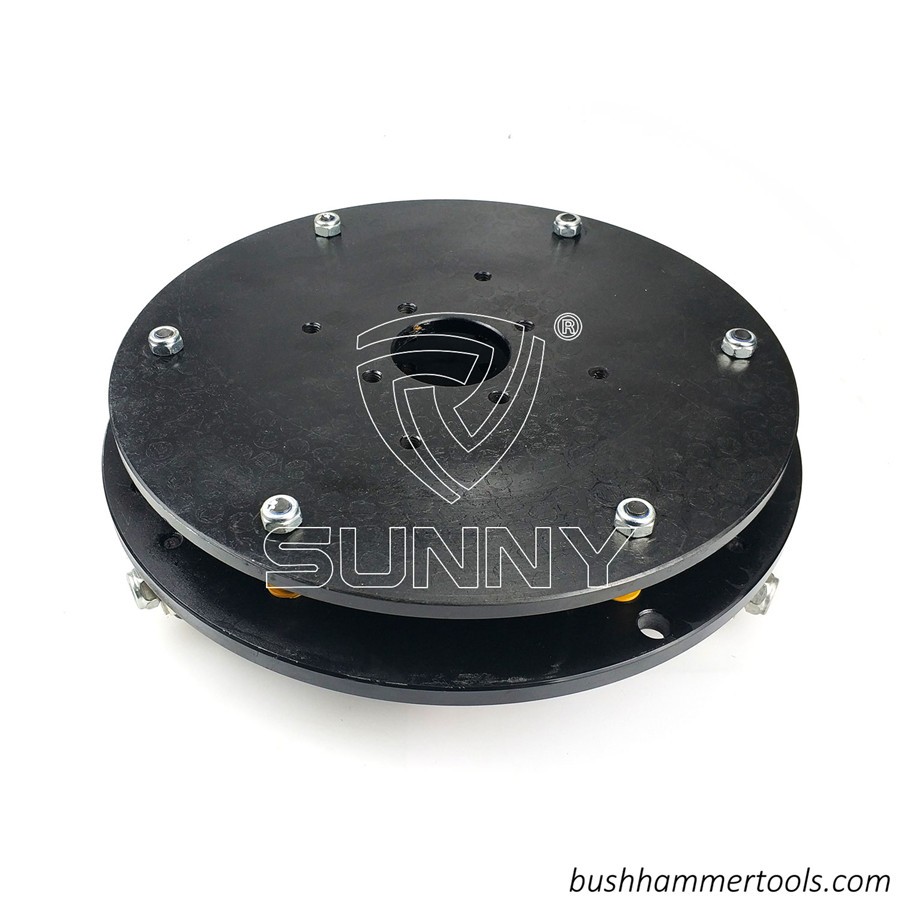

Compared with single layer type bush hammer plate, double layers have springs between the 2 layers which works as a buffer. This design is helpful because the stone slabs not always stay level. BHP9 b

  • Item Number: BHP9
  • Product Type: Double layer type bush hammer plate
  • Product Size: φ300mm*6 rollers
  • Roller Size: φ32mm×L60mm
  • Line Width:

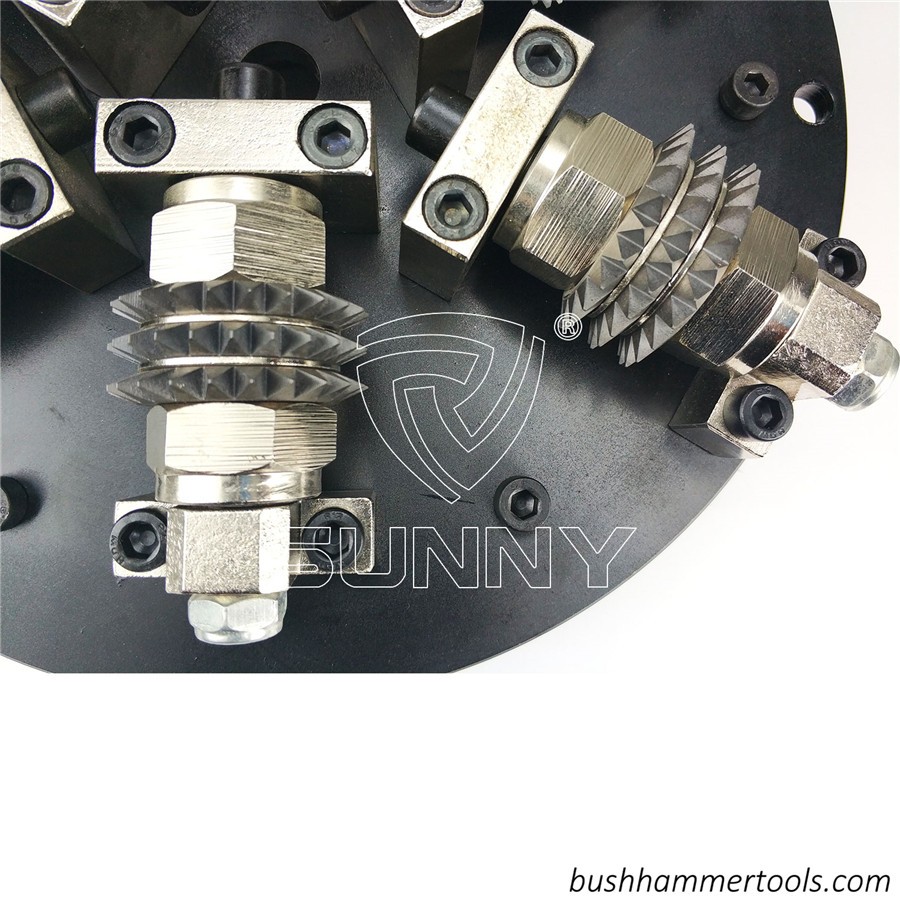

  • Carbide Details: planetary carbide piece, φ49mm/φ24mm×W6mm×23Teeth, 3 pieces per roller
  • Connection: 8 threaded holes
  • Applied Machine: Grinding machines for stone slabs
  • Applied Material: Granite, marble, and other stones
  • Net Weight: 15kg

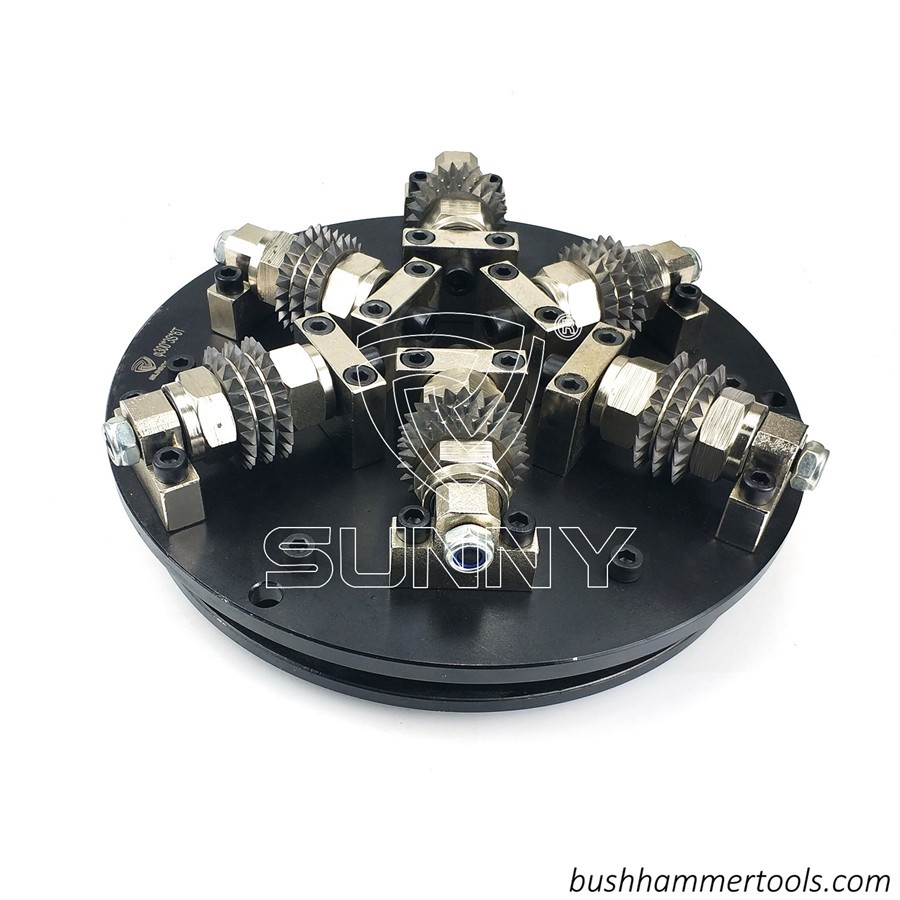

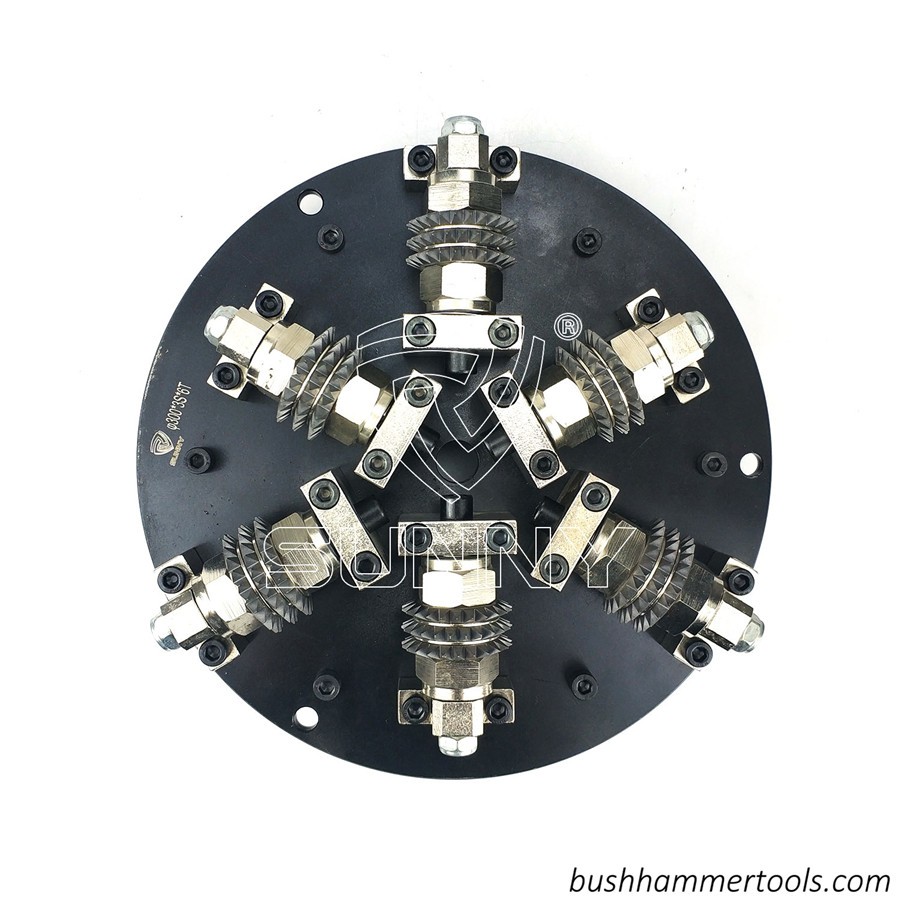

Compared with single layer type bush hammer plate, double layers have springs between the 2 layers which works as a buffer. This design is helpful because the stone slabs not always stay level. BHP9 bush hammer plate is designed with 6 planetary rollers. Each roller is assembled by 3 pieces of planetary carbides. It is used for creating a medium bush-hammered profile on the surface of granite, marble and other stone slabs. One of the features is that this planetary carbide is an endless type and fixed by assembly, not welding. So, it is very easy to replace and Sunny can provide you with separated planetary carbides for replacement.

  • Double layer 300mm bush hammer plate with 6 rollers

  • For creating medium bush hammering surface on granite, marble and other stone slabs

  • High quality of carbides and other components ensure its high performance and long lifespan

  • Endless type of planetary carbides, easy to be replaced

  • Separated planetary carbides are available from Sunny


Product Name

Double Layers 300mm Rotary Bush Hammer Plate With 6 Planetary Bush Hammer Rollers

Item NumberBHP9
Product Size
φ300mm*6 rollers
Roller Sizeφ32mm×L60mm
Carbide Detailsplanetary carbide piece, φ49mm/φ24mm×W6mm×23Teeth, 3 pieces per roller
Connection8 threaded holes
Applied MachineGrinding machines for stone slabs
Applied MaterialGranite, marble, and other stones
Net Weight15kg
